201 304 Art Etched Pattern ODM Design Stainless Steel Sheet For
Lift Door
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment , picking or equipvalent cold rolling ,
followed by skin pass to obtain adequate luster surface. | With bright and smooth surface ,easy for further grinding to obtain
brighter surface ,suitable for medical instruments ,milk containers
,tableware and so on. |
| BA | Bright heat treatment after cold rolling. | Structual members .etc.kitchen utensil ,cutlery ,eleltric
applicances ,medical instruments ,building decorations ,etc. |
| NO.3/NO.4 | Polished with No.150-240 abrasives. | Milky food processing equipment , medicalinstruments ,building
decorations. |
| HL | Finshed by polishing with abrasives of suitable grain size to
obtain continuous streaks. | Building decorations ,such as elevators ,escalators ,door etc. |
| 6K/8K | A mirror-like reflective surface ,which is obtained by polishing
with successively finer abrasives and buffing extensively with all
gritlines are removed. | Buliding entrances,bulkding column casting ,elevator's wall doors
,counters,sculptures etc. |
Thickness | 0.3 mm - 3.0 mm |
Size | 1000*2000mm, 1219*2438mm, 1219*3048mm, customized Max.width 1500mm
and length 4000mm |
SS Grade | 201 / 304 / 316 / 430 etc. |
Surface Treatment | Mirror / Satin / Anti-Fingerprint / PVD Color Coating / Embossing /
Etching / Stamping |
Origin | POSCO / JISCO / TISCO / LISCO / BAOSTEEL |
Protective Film | Single layer or double layers of 7C PVC or Laser film with or
without customized logo |
Package | Wooden cases or plywood cases of standard type or more robust
double layers type |
What is elevator stainless steel sheet ?
Elevator stainless steel doors are the perfect way to carry a
design theme across a property, from cab interior to cab exterior
and beyond. Included within this group are door skins for elevator
car doors and hoistway doors in a variety of materials, finishes
and patterns.
| Product Name | Stainless Steel Elevator Door Panel |
| Standard | JIS, AISI,ASTM,GB,DIN |
| Type | Sheet |
| Material | Stainless Steel |
| Thickness | 0.2mm-3mm |
| Size | Main Size | Other Size |
| 1219mm*2438mm | Customized |
| Surface Finish | HL,NO.4,6K,8K,10K,Mirror |
| Vibration,Sandblasted,Linen,Etched,Embossed |
| Anti-fingerprint,Combination,Lamination,Etc |
| Color | Titanium gold,rose gold,champagne,gold |
| coffee,brown,bronze,brass,wine red,purple |
| sapphire,Ti-black,wooden,marble,texture,etc. |
| Pattern | Customized |
| Application | 1.Indoor and outdoor public space backdrop |
| 2.Aisle |
| 3.Entrance background image of the wall |
| 4.Door signs |
| 5.Ceiling |
| 6.Living room background wall |
| 7.Elevator cabin,handrail |
| 8.Kitchen equipment |
| 9.Specially for bar,club,KTV,hotel,bath center,villa. |
| Advantage | Fireproof,Waterproof,Corrosion |
| Protection,Colorful,Fashionable,Delicate,Luxurious,Fast
Color,Stable |
| In Decorative Effection. |
Chemical composition and mechanical properties of stainless steel
| Grade | Chemical Composition (%) | Mechanieal Performece |
| C | Si | Mn | P | S | Ni | Cr | Mo | Hardness |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - | HB≤187,HRB≤90,HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - | HB≤183, HRB≤88 HV≤200 |
Product Display:
Various Pattern For Your Choose
Customized patterns are available here or you can choose our
existing patterns

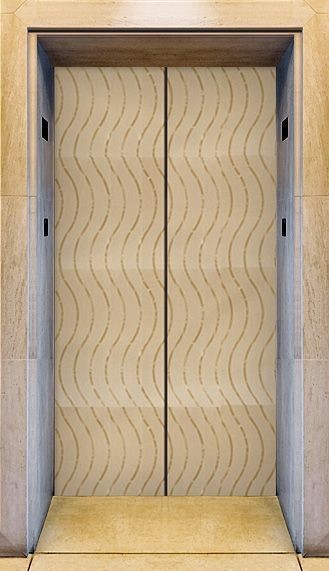

Elevator stainless steel sheet application
elevator stainless steel door panel are widely used in
homes,hotel.shoping malls,with various style and patterns for you
to choose
Quality Control
Regarding the quality control of Asia Metal stainless steel, our
products need to go through a series of strict quality control from
production to delivery, including chemical composition
test,thickness detection,bending test,hardness test,metallographic
test,inter-granular corrosion test etc. to ensure Our products are
safely delivered to customers.
Packaging & Delivery
Stainless steel sheet packaging and loading
1 Sheets covered with wooden plate for protection in
transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step
informed.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
